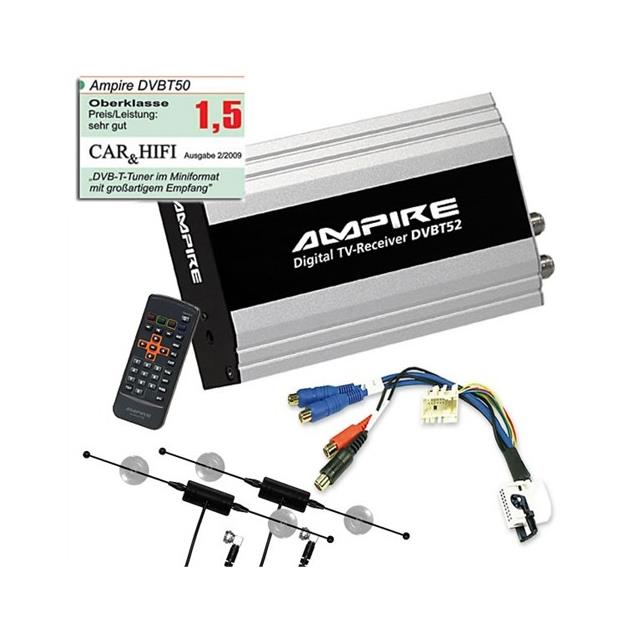

DVBT50 - DVB-T Diversity-Receiver + DVB-T-Anntennas + Audio&Video-Adapter for BMW 7er (E38) / 5er (E39) / 3er (E46) / X5 (E53) / X3 (E83) / Z4 SET
Article number: 11002435
In a few steps to the desired article
Ampire DVB-T2 HD Quad-Receiver USB HDMI DVB-T2 HD Quad-Receiver
Integral part of this set
Interface Video Adapt BMW mit TV-Tuner MK1-4 + RFK Interface
Integral part of this set
Ampire DVB-T Aktive Antenne F-Stecker +20dB ANT500 DVB-T Antenne
Integral part of this set
| Producer Item No.: | DVBT50 |
| Producer: | Ampire |
| EAN: | 4260052632925 |
Equipment:
Multichannel TV reception in your car, truck, bus or boat and therefor given access to free digital TV and radio channels in the flicker-free digital picture and sound quality. Reception Teletext, subtitle, and electronic program guide EPG. Output in 4:3 and 16:9 formats on the 4-Poiger jack. The user menu can be arranged in the following languages: German, English, French, Italian, Dutch, Portuguese, Chinese and Spanish. The DVBT50 of AMPIRE has the same excellent reception of the larger self-switching receiver DVBT200 (test case: Absolute top class in the autohifi). Also, the ease is identical.
Test reports / Information:
We could send you test reports and/or further information, if you like. Just send us an e-mail at info@kolumbus24.com.
|
"Test of DVBT50 in the Car & Sound Magazine" |
| DVBT51 | |
| VIDEO OUT: | 1x CVBS output 3.5mm stereo jack to RCA adapter |
| AUDIO OUT: | 1x Output stereo 3.5mm stereo jack to RCA adapter |
| AUDIO LEVEL: | 1 volts RMS |
| POWER SUPPLY: | 12 volts DC max. 2.5 watts (0.18 A at 13.8 volts) |
| PENSION POWER: | 0 watts (0.0 A at 13.8 volts) when the ignition is off |
| WORKING TEMPERATURE: | -30 ° C to +70 ° C |
| OPERATED VIA: | Infrared remote control, over the factory navigation system with optional multimedia interface, over the headrest monitors AMX, AMT and VGA series as well as ALPINE Mobile Media Stations with DVB-T control |
| ANTENNA CONNECTOR: | 75 Ohm input impedance, F-connector antenna jacks, 5 Volt output voltage for active antennas |
| ACCESSORIES INCLUDED: | Infrared remote control FB DVBT300 IR receiver to me RJ12 plug (PIN3 = mass PIN4 = IR, PIN6 = 5 VDC) German / English operating and assembly instructions AV Cable (1 meter) 2x jack to RCA plug IR control cable to open cable ends for connection to ALPINE Mobile Media Stations with DVBT-control |
| DIMENSIONS (L x W x H): | 75x135x26 mm |
| WEIGHT: | 300g |
| APPROVALS | E-Nummer E9-10R-02.6009ETS300744 DVB-TMPEG IICE/RoHS |
Technische Daten / Technical Specifications
| Netzteil / Power Supply | |
| Betriebsspannung / Power supply voltage: | 12 VDC |
| Leistungsaufnahme / Power consumption: | 3,6 Watt max. / 2,7 Watt Standby (Twin Tuner) |
| RF / RF | |
| Frequenzbereich / Frequency range: | 145,1 - 862 MHz |
| Kanalbandbreite / Channel bandwidth: | 6 / 7 / 8 MHz |
| Eingangsimpedanz / Input impedance: | 75 Ω |
| Modus / Mode: | OFDM 2k, 8k, QPSK, 16/64 QAM |
| Speicher / Memory: | 2MB Flash, 8MB MPEG DRAM, 8KB EEPROM |
| Video Ausgang / Video Output | |
| Anschlusstyp / Connector type: | 3,5 mm 4-Pin Plug to RCA |
| System / System: | PAL / NTSC |
| Darstellung / Aspect ratio: | 4:3, 16:9 |
| Video Auflösung / Video resolution: | 720 x 576 PAL, 720 x 480 NTSC |
| Audioausgang / Audio Output | |
| Anschlusstyp / Connector type: | 3,5 mm 4-Pin Plug to RCA |
| Modus / Mode: | Mono, Stereo, Dual Sound |
| Sampling Rate / Sampling rate: | 32, 44,1 & 48 kHz |
| Abmessungen /Dimension | |
| Maximale Abmessungen (BxHxL) / Max size (DxHxL) | 75 x 26 x 135 mm |
| Bild & Ton Adapter / Picture & Sound Adapter | |
| Spannungsversorgung / Power supply: | 12 V DC |
| Temperaturbereich / Temperature range: | -40 - +85 °C |
| Abmessungen / Dimensions: | Kabellänge ca. / Cable length approximately 300 mm |
| Gewicht / Weight: | 0,063 kg |
incl. ANT300 – Active DVB-T Aerial, +20dB
- Active window antenna for adhesive AMPIRE DVBT50/51/100/200 and other DVB-T receivers with 5-volt phantom powering, DVB-T receivers without 5-volt phantom power per antenna, you need a GSW300.
- for vertical mounting in front, rear and side windows suitable
- 5m cable length with angled F connector (75 ohms)
- black anodized antenna reflectors
- Frequency range 174-230 VHF, UHF 470-862MHz.
- Gain: +20 dB
- Operating voltage 5 V DC
- Power consumption 18-20mA
- Operating temperature -20° C to +65° C
- to be consistent with RoHS
- Dimensions 241 x 19 x 13mm (LxWxH)
- Quantity 1 Piece
Note: The included suction cups to facilitate the repositioning test rides in the car. Once you have found the best fitting and the antenna is glued, you can remove the suckers.
Audio Video Adaptor
With this cable set you can connect the DVD player directly to the AV Input of the original (analogue) BMW TV Tuner or connect an additional monitor for the rear passengers. Audio input only in mono!
The visual & audio adapter is only for automotive use and has therefore a lifetime of max. 10 years.
Optional Accessories
An optional interface (for Audi, BMW, Mercedes, Porsche, VW, …) provides even more comfort, because it lets you control the basics via steering wheel remote control or directly via the buttons of your navigation system.
Scope of Delivery
- DVB-T Diversity Receiver
- ANT300 DVB-T Aktive Antenna (2 pc)
- Remote Control
- Infrared receiver
- Connecting Cable
- Battery
- Audio / Video Cables
- Operating Instructions
- Audio-Video-Adapter
